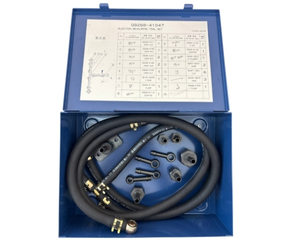

product product Item shown may not be actual product.
Product and price information are subject to change without notice.
Call 800-368-6787 for price

INJECTION MEASURING TOOL SET


Item Number: 09268-31012
This tool is an Essential SST



NOTE: Tools 09268-31012/31013/31014/31015 and 09268-41045/41046/41047/41048 have been superseded by part number 09268-31016.

Includes

  • 09268-27011 No. 2 Union
  • 09268-41061 No. 3 Union
  • 09268-41071 No. 4 Union
  • 09268-41081 No. 6 Union
  • 09268-41091 No. 7 Union
  • 09268-41100 Clamp
  • 09268-41110 Adapter
  • 09268-41120 3-Way
  • 09268-41130 Adapter
  • 09268-41140 Adapter
  • 09268-41160 Adapter
  • 09268-41300 Clamp
  • 09268-41310 Clamp
  • 09268-41400 Clamp
  • 09268-41500-01 Clamp
  • 09268-41600 Adapter
  • 09268-52011 Injection Measuring Attachment
  • 90405-09015 No. 1 Union
  • 90467-13001 Clip
  • 95333-06030 Hose
  • 95336-08070 Hose
  • 96150-02000 C-Ring

Product Specifications

  • Weight: 5.05
  • Dimensions: 231.14 x 269.24 x 111.76 MM
