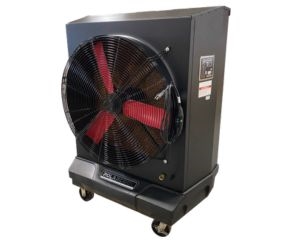

PolarCool Pro Evaporative Cooling System
Item Number: HHT66226000
Supplier:
HH TECHNOLOGIES INC
Description
The PolarCool Pro Evaporative Cooling System provides spot and area cooling where you need it, when you need it. Evaporative cooling is a time-tested and eff icient means of reducing air temperature. It is especially useful when the space to be cooled is well ventilated. Evaporative cooling requires just two factors to work: water and moving air. When air is forced through a water-saturated medium, some of the water is pulled away and quickly evaporates. This draws heat from the moving air, thereby lowering the ambient temperature.
Features
- All-metal Upper Housing
- The metal upper housing is finished with black powder coat.
- Plastic Reservoir
- The rotationally molded plastic reservoir is not susceptible to rust or leaks.
- Variable Speed
- The fan can be set to one of 10 speeds.
- Touchpad Interface
- The control panel allows for hassle-free operation and status monitoring.
- Low-water Shutoff
- When the reservoir’s water level is low, the pump shuts off to avoid damage.
- Hinged Top Cover
- The interior of the unit can be accessed quickly and easily.
- Edge-coated Evaporative Cooling Media
- The cooling pads are edge-coated for extended life and improved durability. They are treated with a specially formulated, algae-resistant substrate.
Warranty
Three Years
Product Specifications
- Unit Dimensions: 51” W x 66” H x 29” D
- Unit Weight: 198 lbs (Empty); 515 lbs (Full)
- Shipping Dimensions: 55” W x 74” H x 32” D
- Shipping Weight: 314 lbs
- Drive Type: Direct
- Speeds: 10
- Water Consumption*: 12 Gallons per Hour
- Reservoir Volume: 38 Gallons
- Power Consumption: 10A at 115V; 60 Hz
- Cooling Area: 3,200 ft ^2
- Current: 8.5A
- Typical Air Movement†: 10,000 CFM
- Low-water Shutoff: Equipped
- Cooling Media (x4): CELdek: 12” W x 48” H x 6” D
- Cooling Media Area: 16 ft^2
- Cooling Media Volume: 8 ft^3
- Casters: 4 (2 Fixed; 2 Swivel with Locks)
- Caster Wheel Size: 6”
- Water Output: Adjustable
- Power Cord: 20'; 120VAC; GFCI-protected
- Cord Wrapping Bracket: Front of Unit
- Water Inlet Adapter: 3/4” Garden Hose
- Drain Outlet Adapter: 3/4” Garden Hose
- UL Certification: UL 507
